How to insert multiple instances of an object on the floorplan

How to insert multiple instances of an object on the floorplan

While planning, it’s very likely that you’ll often want to place multiple instances of the same icon on your floorplan one after another.

For example, if you want to place socket outlets in a room, you’ll most likely need to insert several of them one after another.



How to do this while working on your floorplan

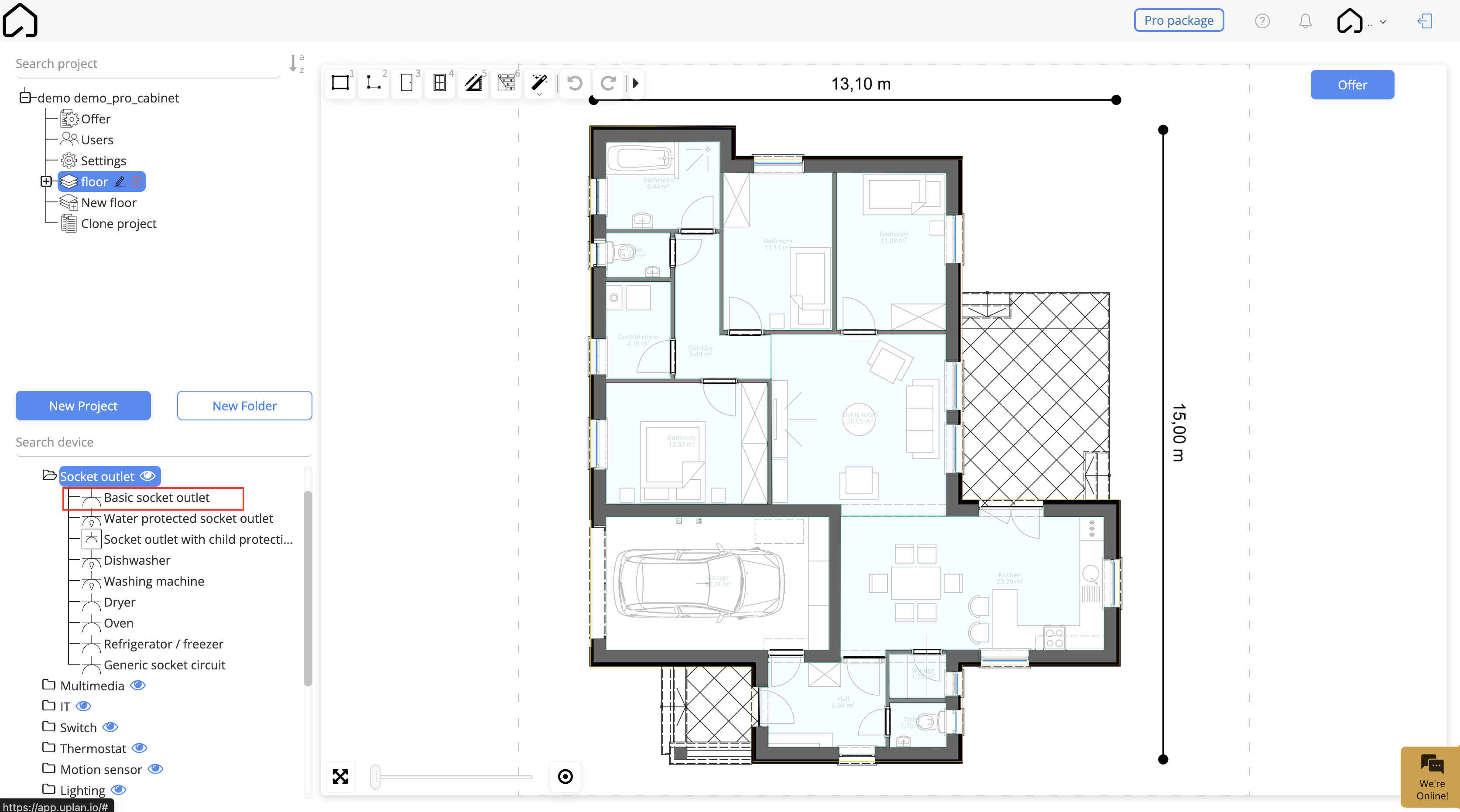

1. In the tool list on the left, find the icon you want to place. In this example, we want to place multiple socket outlets.





2. Hold down the Shift key.

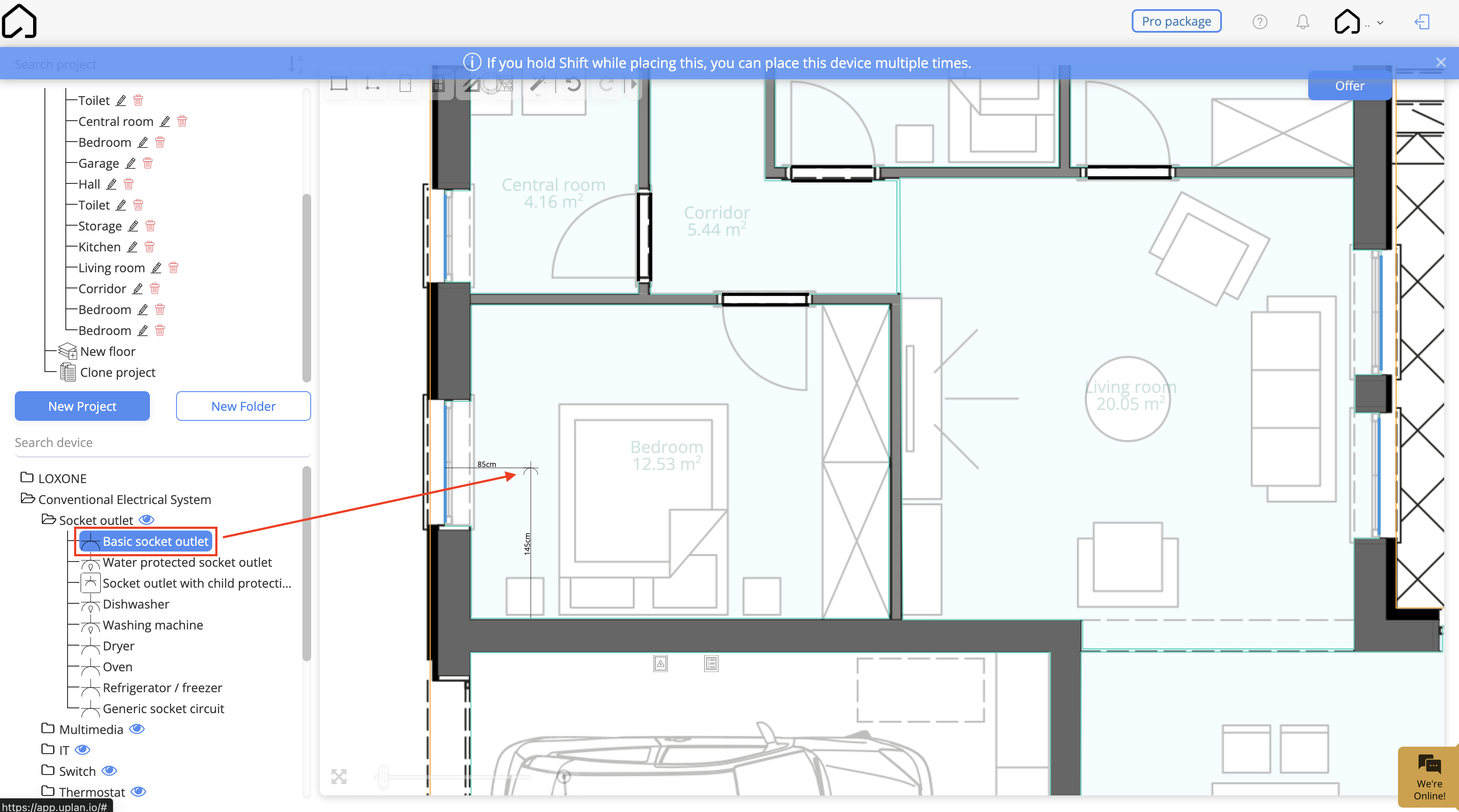

3. While holding down the Shift key, drag the icon onto the floorplan.

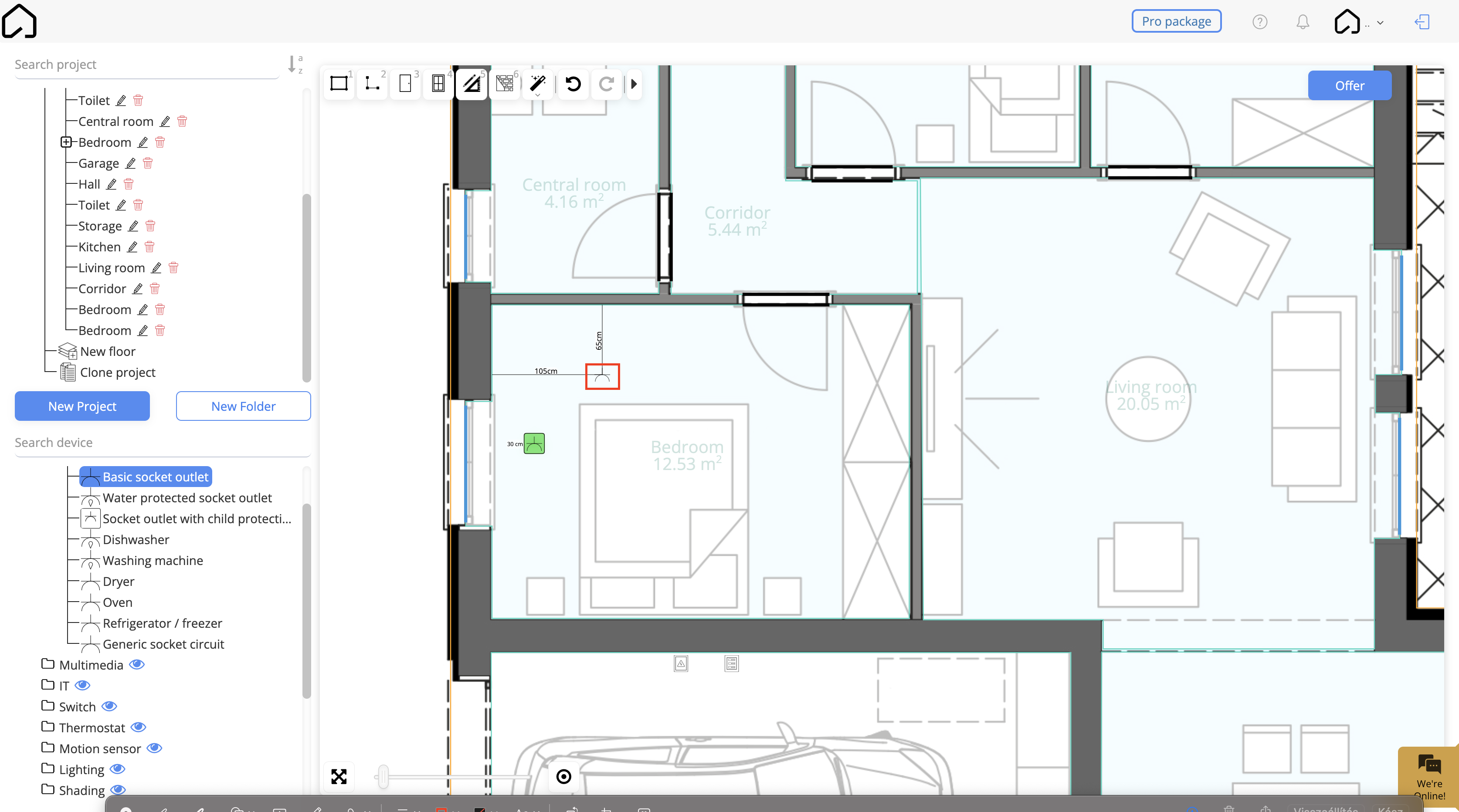

Then click on the next spot where you want to place another icon.





Info

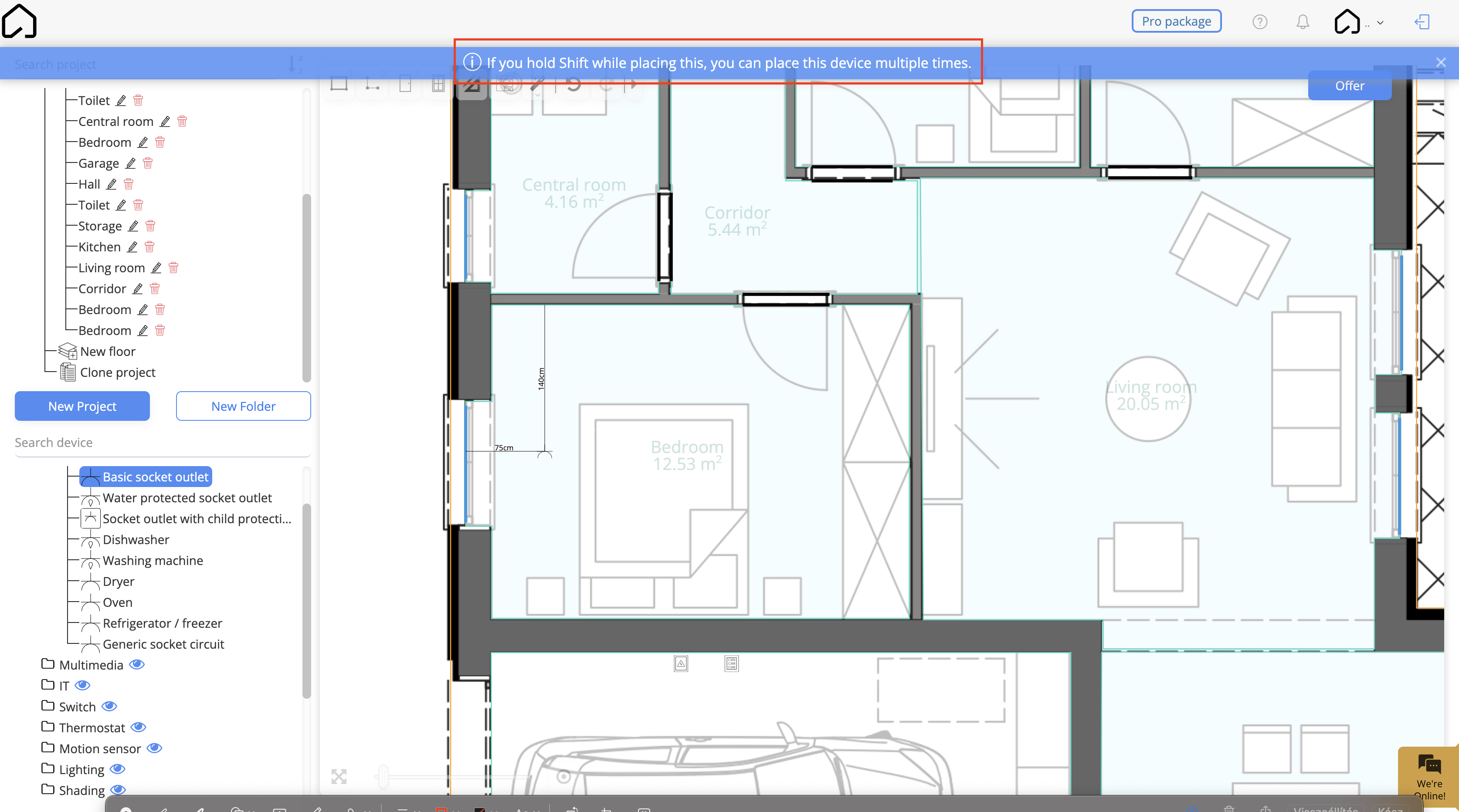

We also highlight this option for you here.
